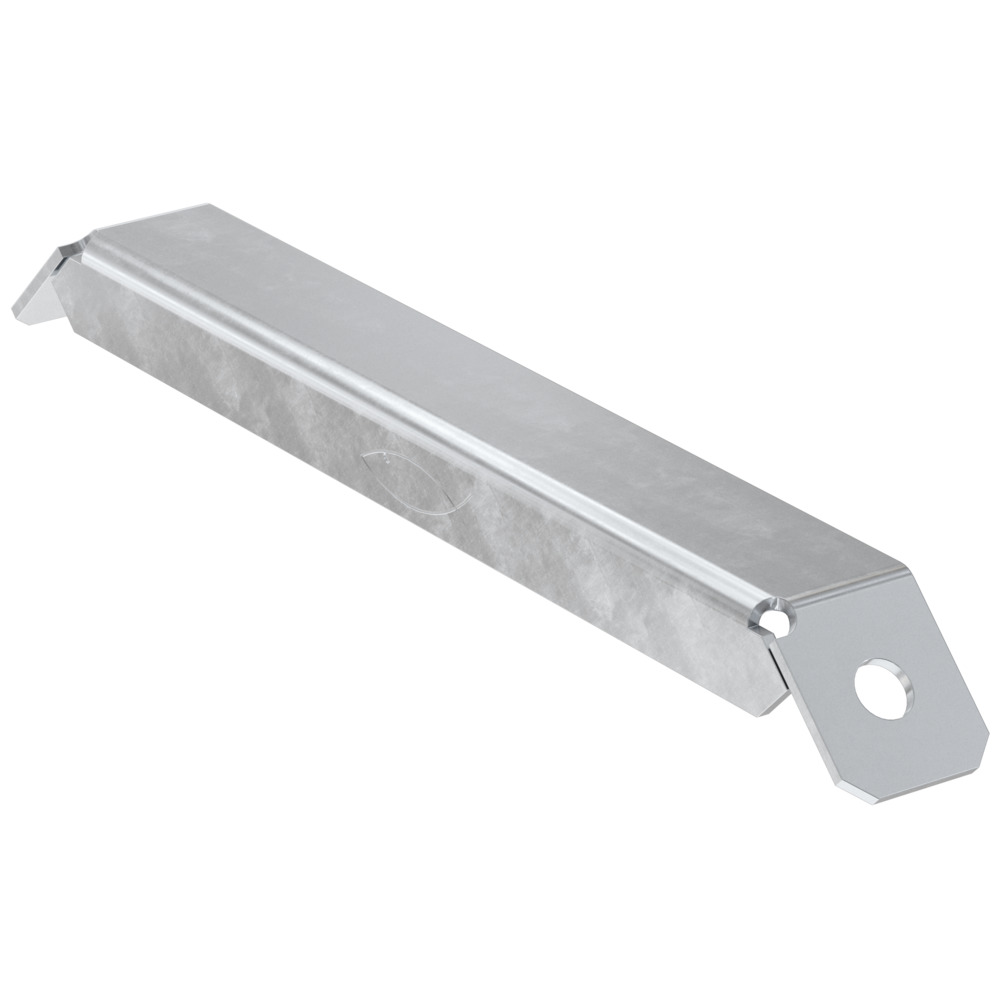

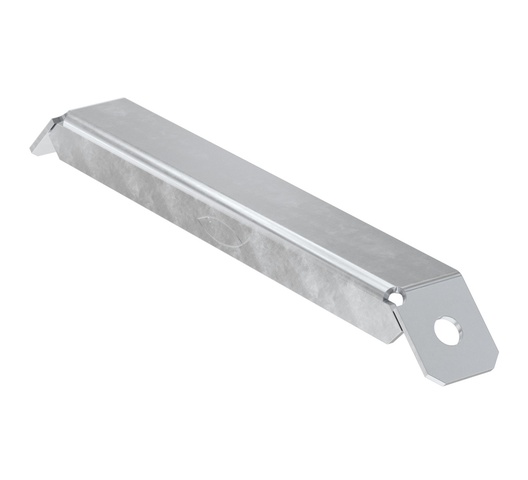

Fischer Angle Brace WS 31 - 45°
by Fischer
KES 1,295

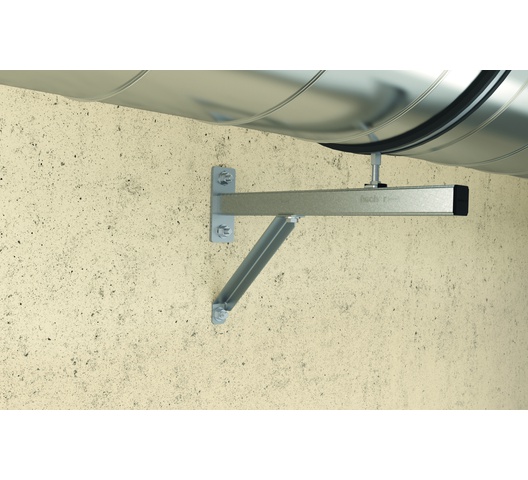

The fischer angle brace WS 31-45° provides supporting structures with really high stability and strength. The dimensions of the angle bracket provide precision that ensures a safe connection with ALK cantilevers and FLS mounting channels. The angle brace dissipates the load either to the wall or to a mounting channel construction. The channel nut FSM Clix P and a screw create the connection to the mounting channel profile. The galvanized zinc version is suitable for installation in buildings.

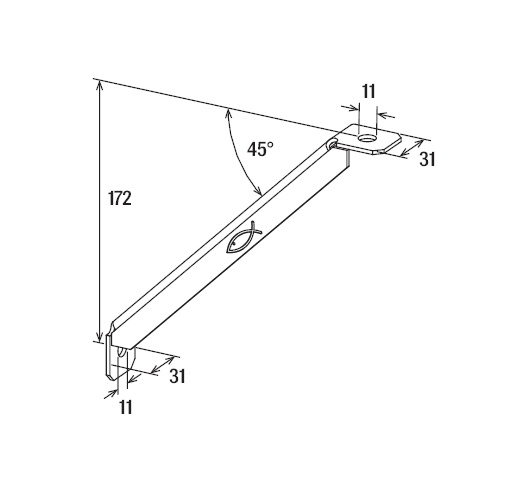

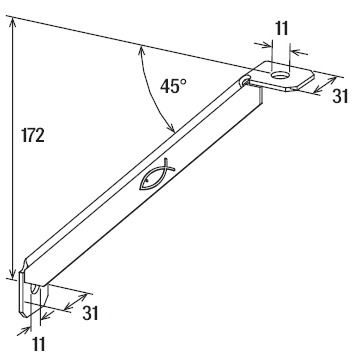

- Eye-Ø: 11mm
| UPC | 538749 |
|---|---|
| Model Number | 538749 |
| SKU | 538749 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Applications

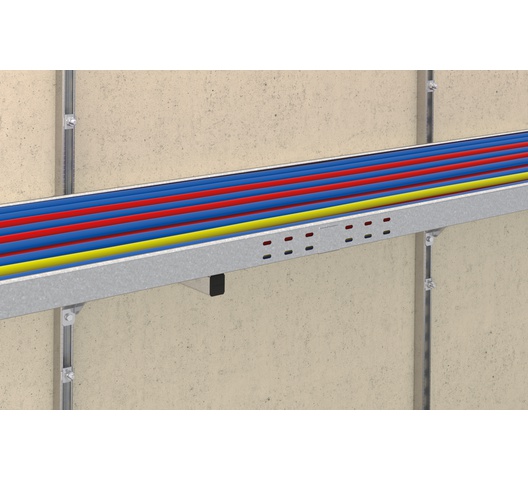

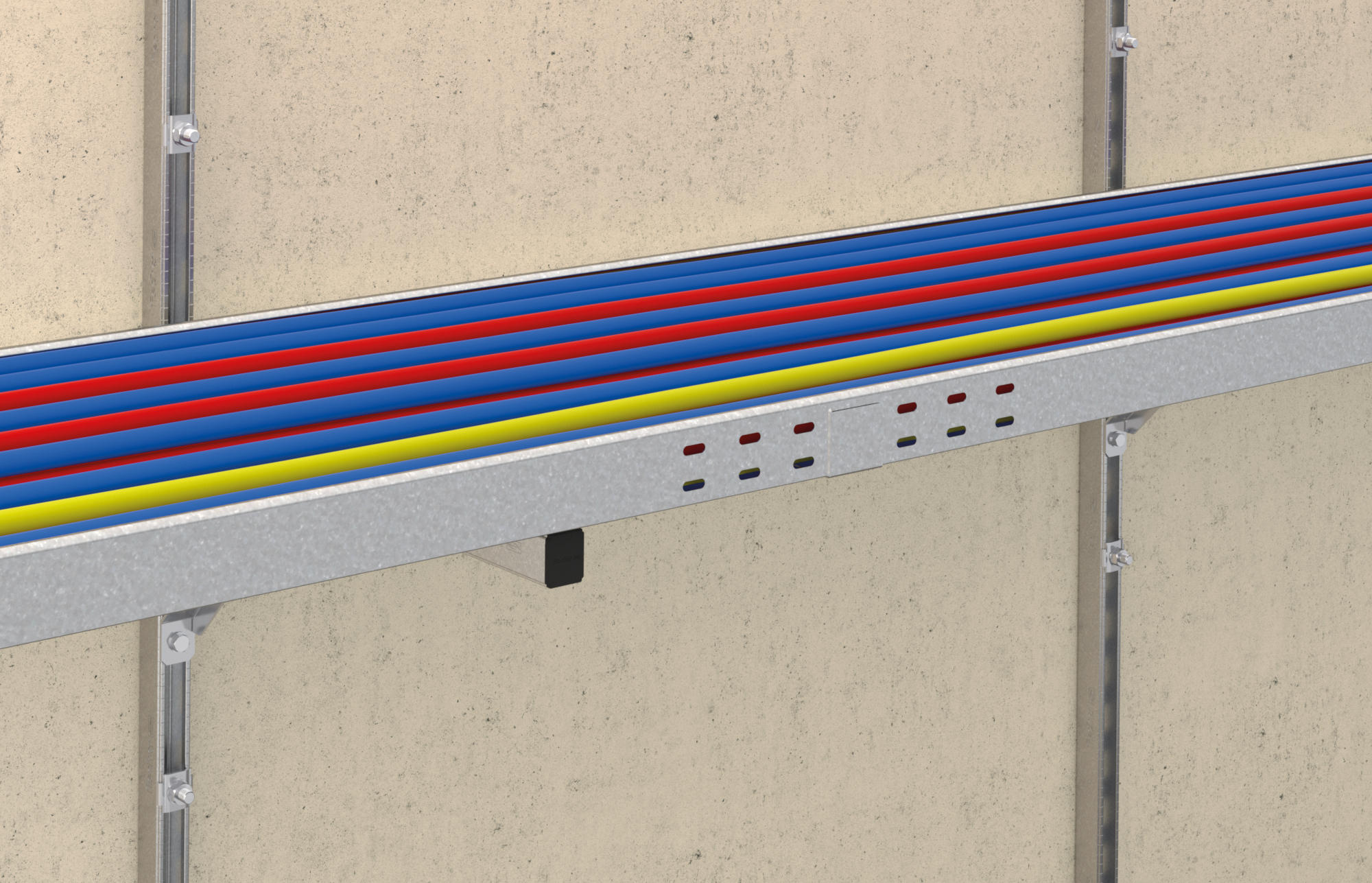

- Angle brace to construct self- supporting channel constructions with FLS channels or ALK cantilever arms.
Advantages
- The stable angle brace element WS 31-45° lends the supporting structure a great stability and safety.
- The size of the angle brace element guarantees a secure connection with ALK cantilever arms and FLS channels by it’s fitting accuracy.
- The standardised long slots in the angle brace enable an exact connection to ALK cantilever arms or FLS channels by using FSM Clix P and a screw.
