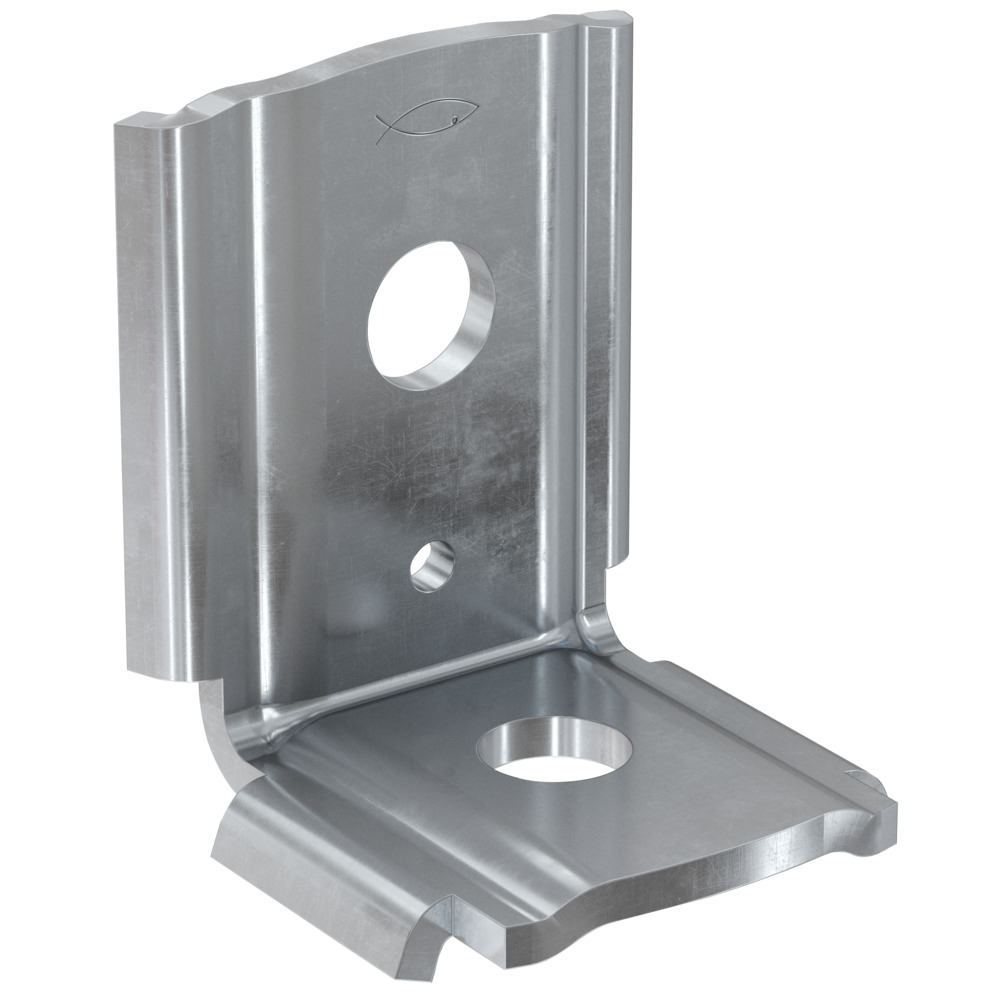

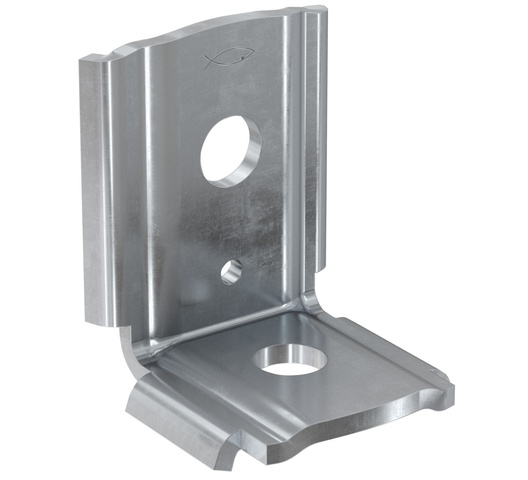

Fischer Angle Bracket MW 90°
by Fischer
KES 220

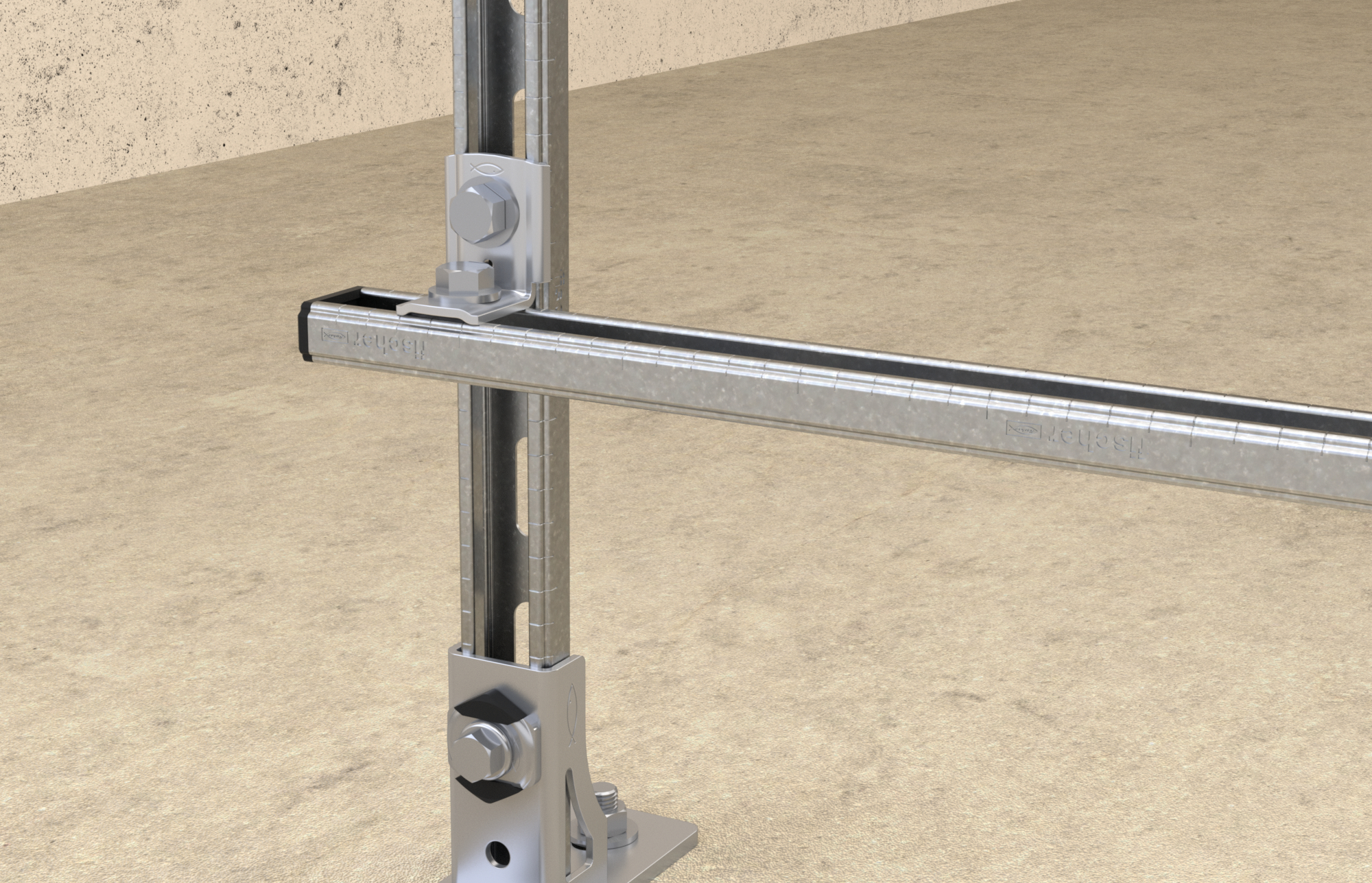

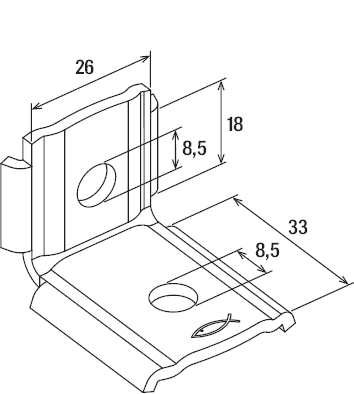

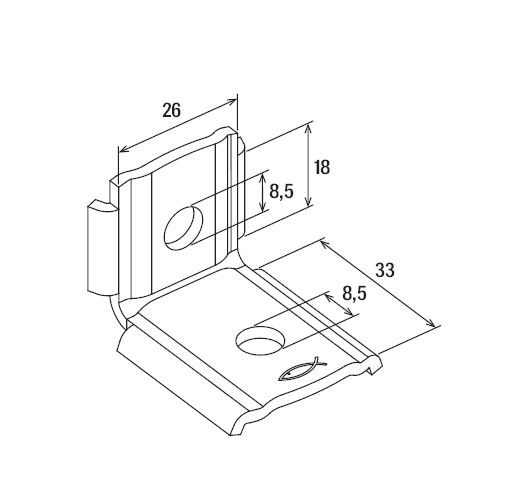

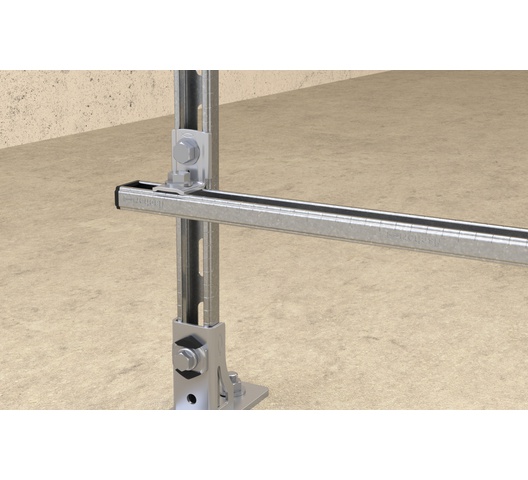

The construction elements fischer mounting brackets MW 90° and MWU 90° along with the channel nut FSM Clix P create precise yet simple connections of mounting channels with each other or to the substrate. The special retaining lugs enable the precise insertion of the MW 90° longitudinally and transverse to the mounting channel profile FLS. The MWU can be directly secured to the substrate in a space-saving installation. The MW and MWU brackets have standard holes with an 8.5 mm diameter in line with the FSM Clix P 8 and plugs with an 8 mm outer diameter. The galvanized zinc version is suitable for installation in buildings.
- Tightening torque: 10 Nm
| UPC | 538668 |
|---|---|
| Model Number | 538668 |
| SKU | 538668 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Applications

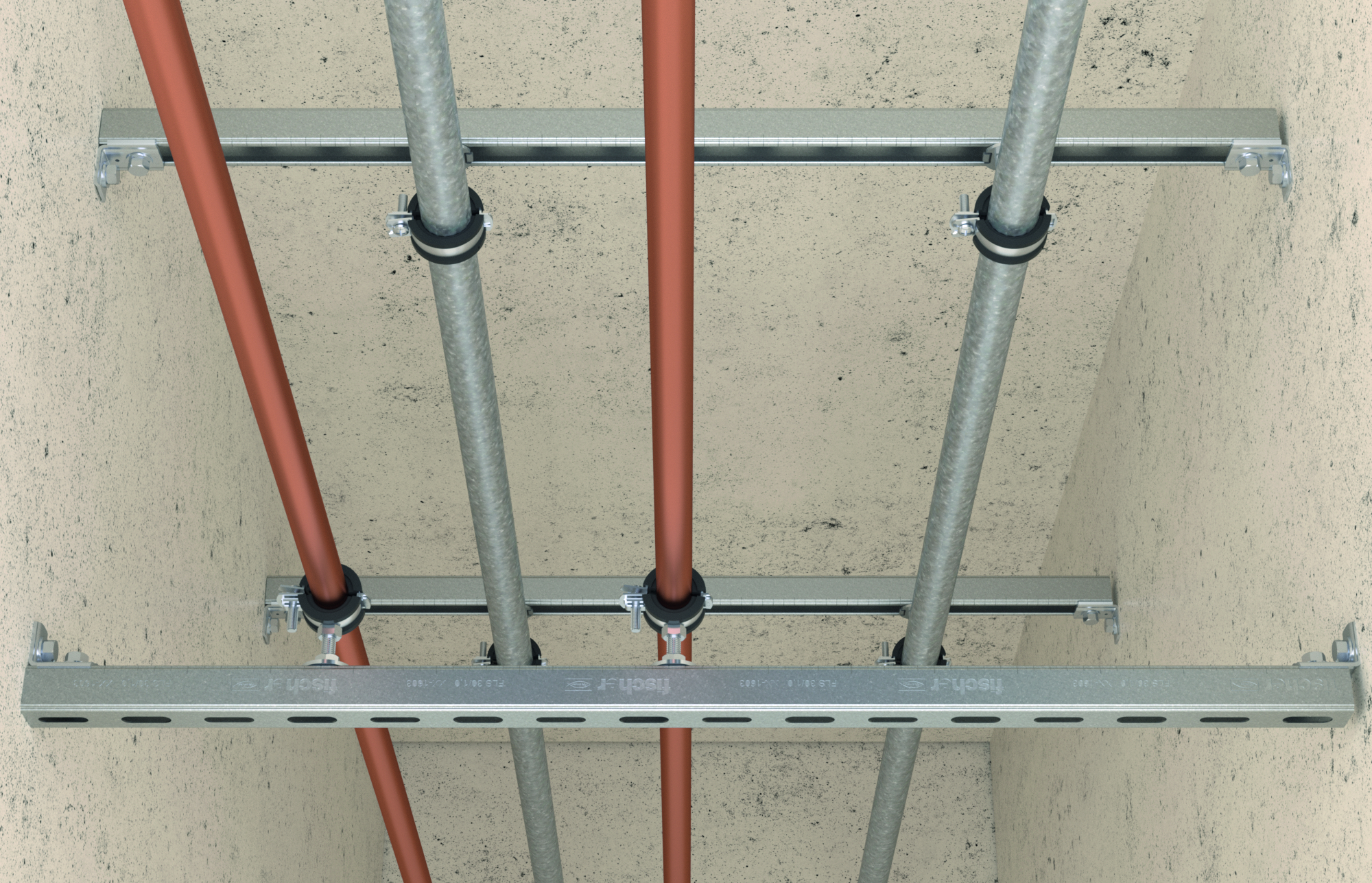

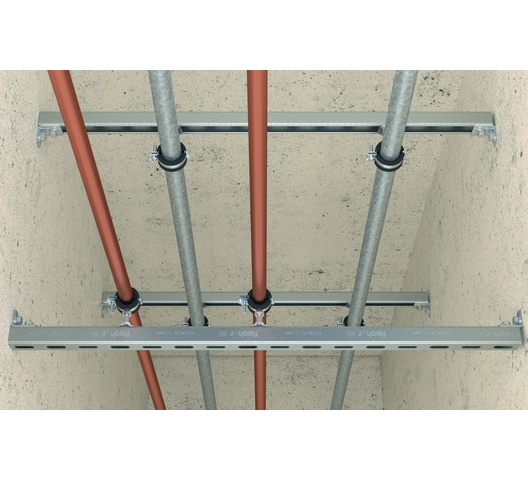

- Connecting elements for the arrangement of simple channel constructions with the sliding channel nut FSM Clix P.
Advantages
- The individual developed retaining brackets at the MW 90° angle bracket enable a form-locking installation longitudinal and transverse to the channel direction to adapt the channel connection effectively.
- The standardised holes in the angle brackets enable an exact connection to the FLS channels by using FSM Clix P and a screw.
Properties
- Material: steel S235 JR+CR (material no.: 1.0037) acc. to DIN EN 1652
- Zinc plating: electro zinc-plated, min. 5 µm acc. DIN EN ISO 4042
