Fischer Angle Bracket MW Clix 90°
by Fischer

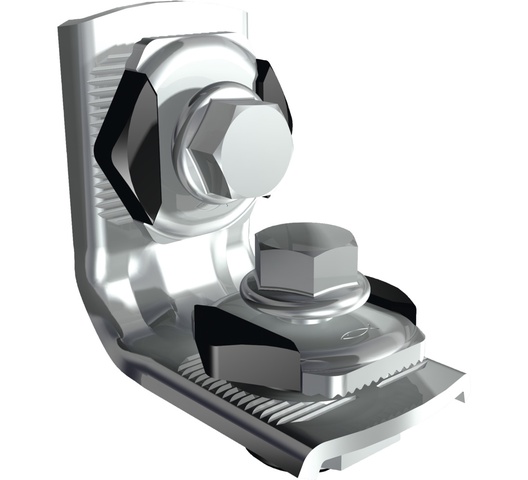

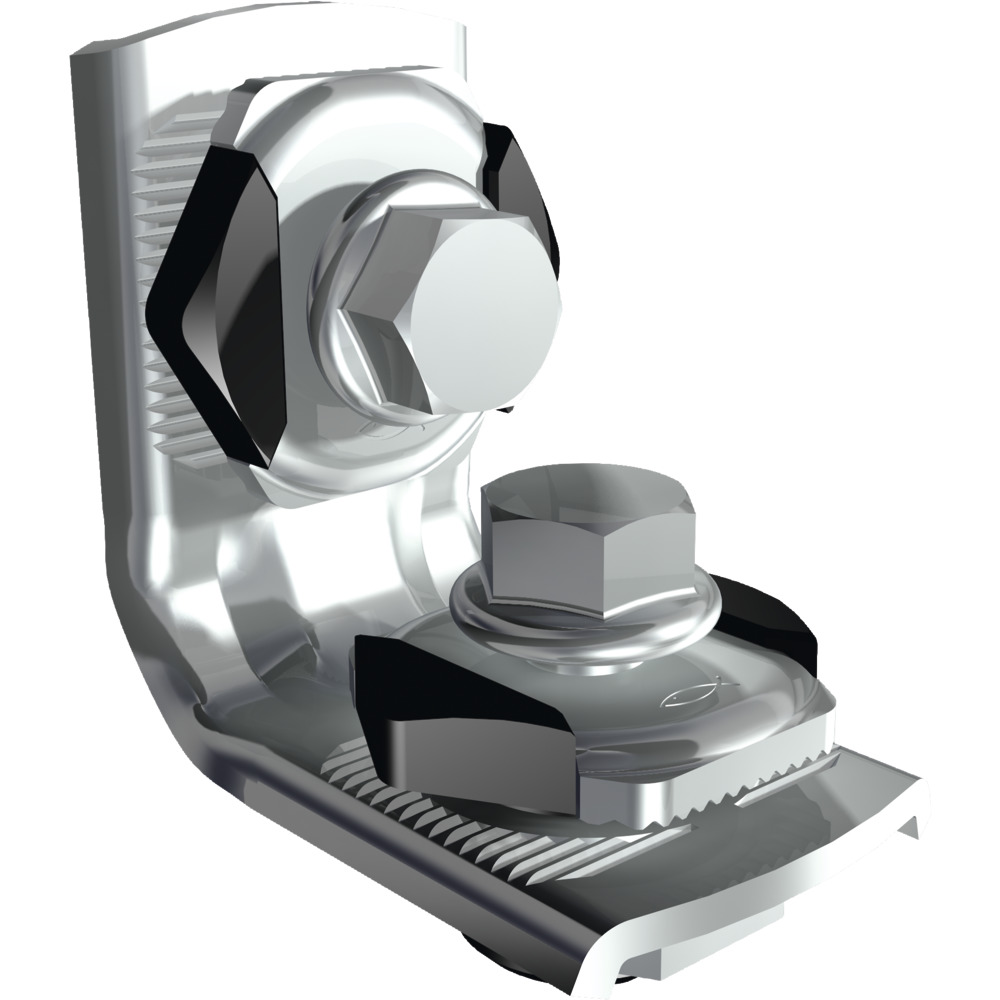

The pre-assembled angle bracket MW Clix 90°
Advantages
Pre-assembled accessories like SF Clix bring the number of articles for a connection down and guarantee a time-saving installation.
The pre-assembled connector of the MW Clix secures the installation position due to the unique thrust block and guarantees a safe and fast installation.
The especially developed spring leg at the pre-assembled connector guarantees the necessary contact pressure of the connector to the channel to help for a secure adjustment during installation.
The form-locking and accurately fitting angle bracket of the MW clix allows a simple installation of the FLS channel and saves valuable installation time.

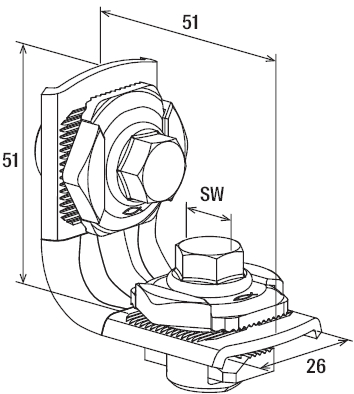

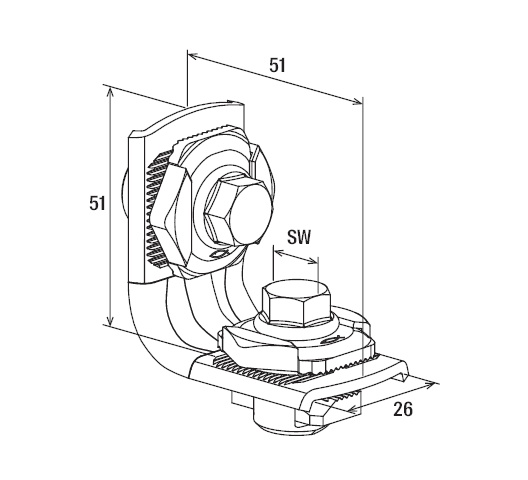

- Thread: M8
- Width across nut: 13mm
- Tightening torque: 10Nm
| UPC | 538666 |
|---|---|
| Model Number | 538666 |
| SKU | 538666 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
- Material angle bracket: steel S235JR+CR (material no.: 1.0037) acc. DIN 1652
- Material channel nut: steel S420MC (material no.: 1.0980) acc. DIN EN 10149-2
- Material cover plate: steel S235JR+CR (material no.: 1.0037) acc. DIN 1652
- Material hexagonal screw: steel min. 4.6 (DIN EN ISO 898-1)
- Material plasic cage: polypropylene PP, item number 11400, Color black
- Zinc plating: electro zinc-plated, min. 5 μm, hexagonal screw min. 3 μm acc. DIN EN ISO 4042

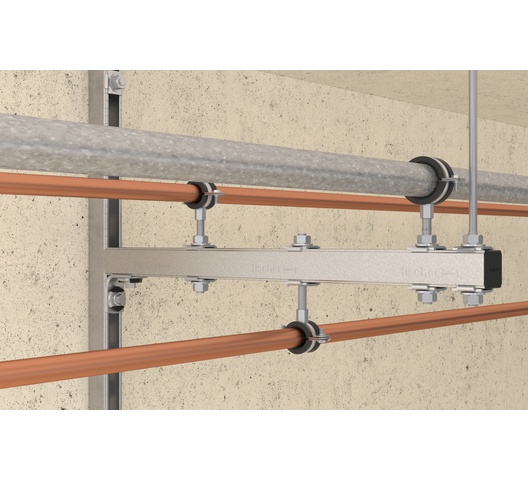

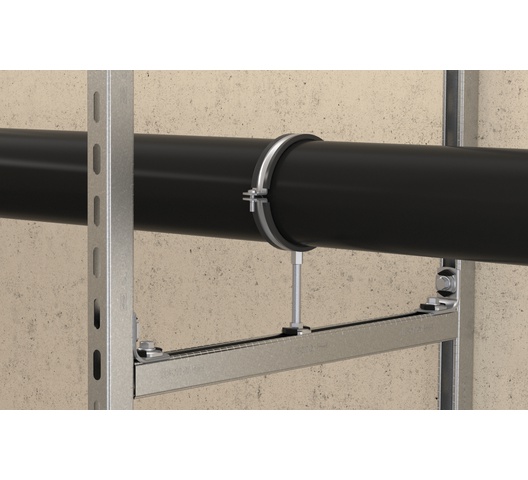

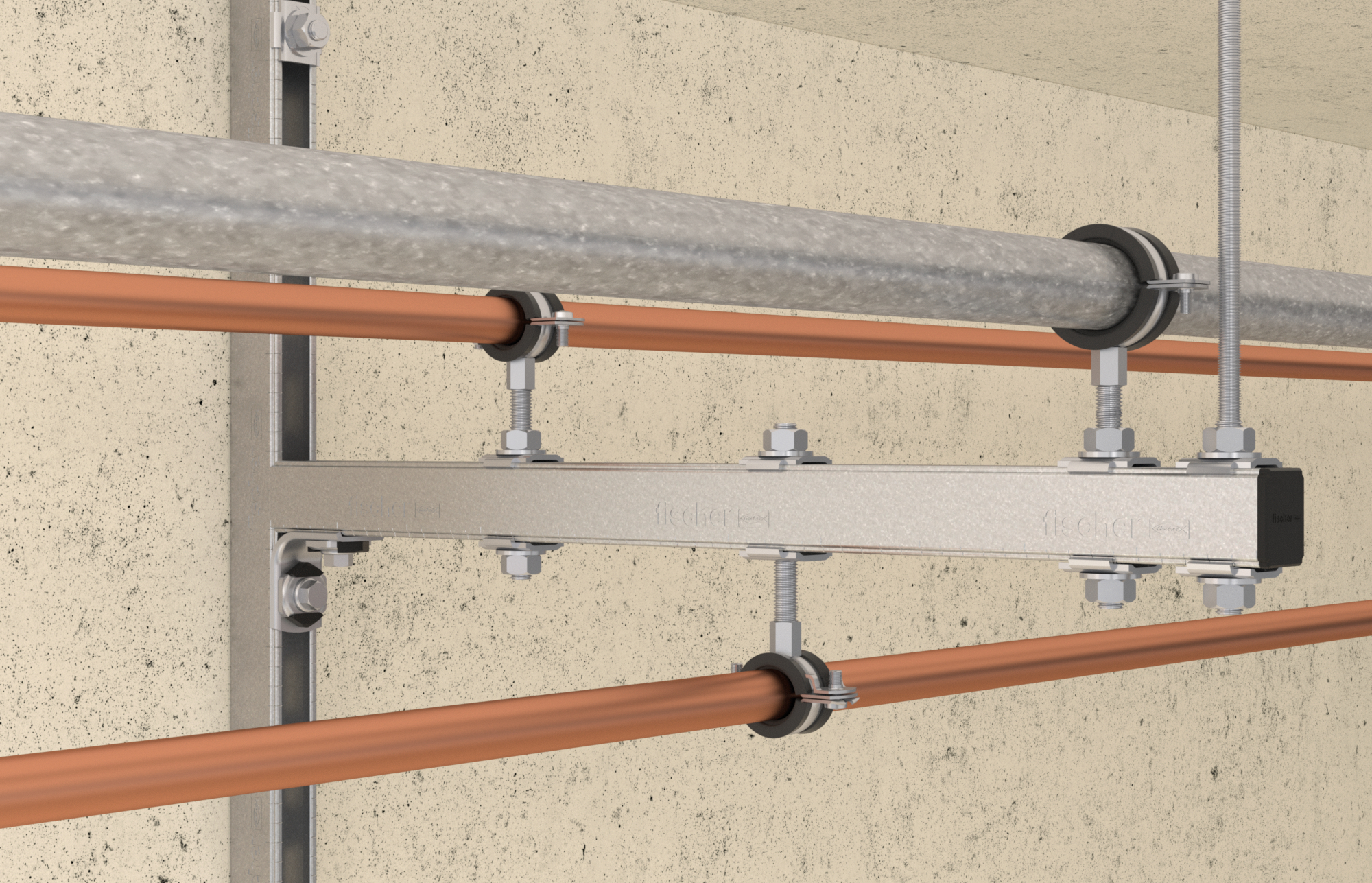

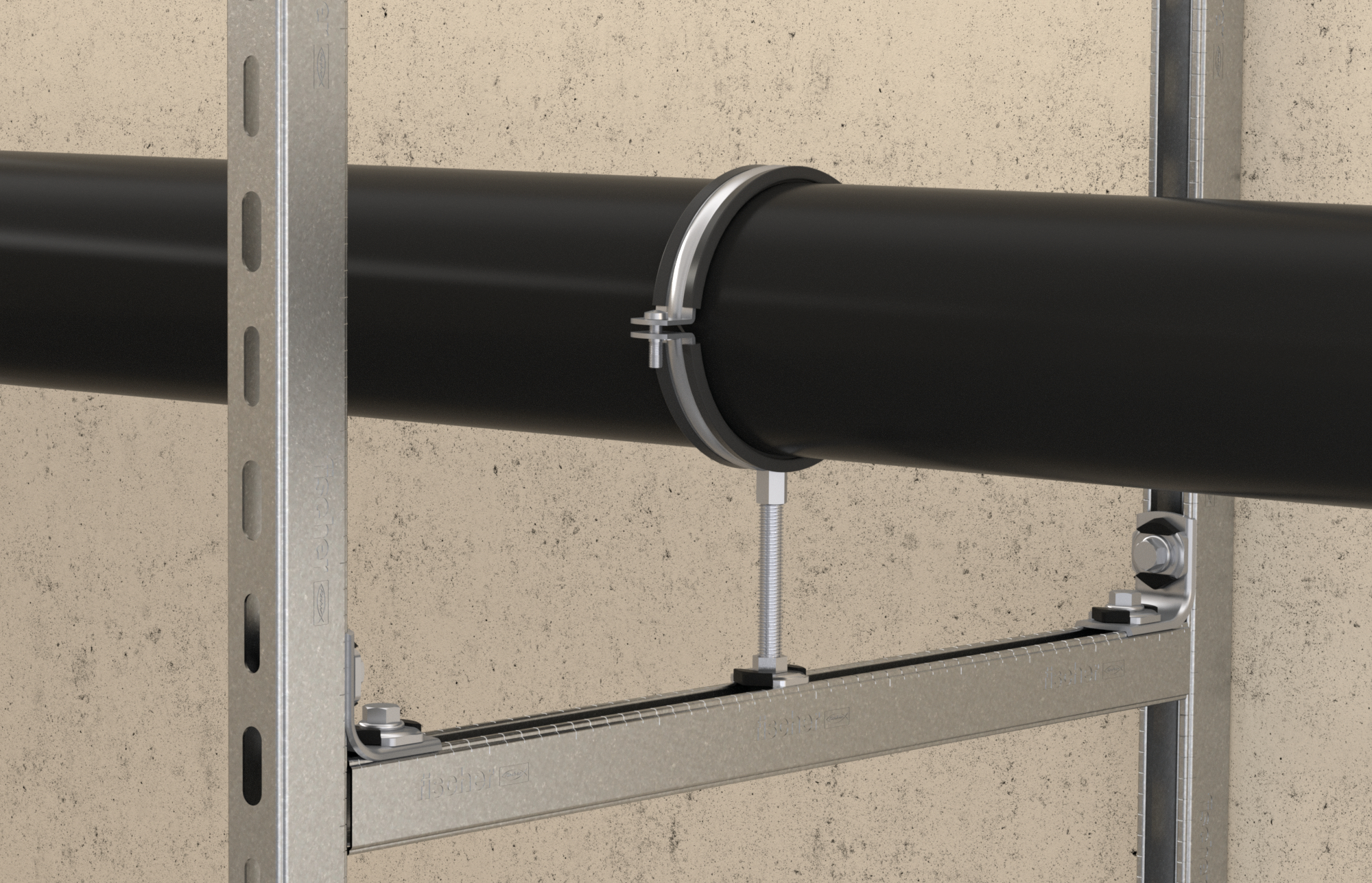

- Element for the stable construction of angle connections with FLS channels.
