Fischer Cantilever Arm ALK 30
by Fischer
KES 1,000
KES 1,050
KES 1,700
The fischer cantilever arms ALK enable the cost-effective fixing of single conduits and pipeline routes along walls as second base elements with the mounting channel profile FLS. Thanks to the slots at 90° to each other, the cantilevers can be easily adjusted. The ALK does not need to be cut to size because fischer offers standard lengths from 200 to 600 mm. The galvanized zinc version is suitable for installation in buildings. The fire inspection report as per MLAR / EN1363-1 of the ALK 37 provides added safety.
- Scaling on both sides along the rail for accurate and correct placement of pipelines
- Different lengths available for every application
- Application-specific corrosion protection due to sendzimir galvanisation
- For use in dry interior areas
| UPC | 538740 |
|---|---|
| Model Number | 538740 |

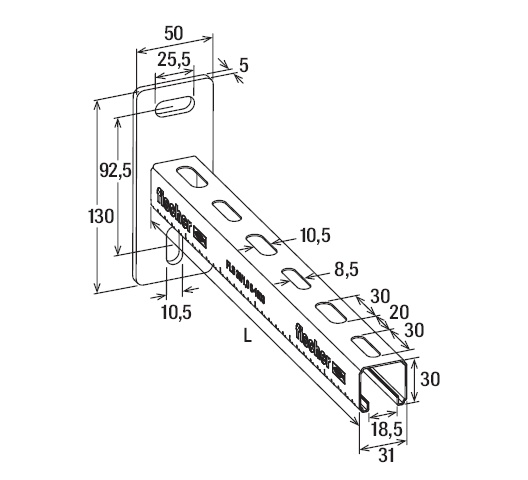

| Profile | 30 / 1.0 |
| Length (mm) | 200 |
| Max. recommended static load load case 1 (kN) | 1.18 |
| Max. recommended static load case 2 (kN) | 0.59 |
| SKU | 538740 |
| UPC | 538741 |
|---|---|
| Model Number | 538741 |
| Profile | 30 / 1.0 |
| Length (mm) | 300 |
| Max. recommended static load load case 1 (kN) | - |
| Max. recommended static load case 2 (kN) | - |
| SKU | 538741 |
| UPC | 538745 |
|---|---|
| Model Number | 538745 |

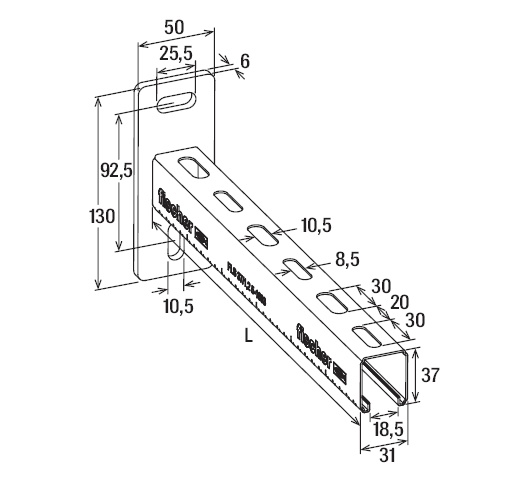

| Profile | 37 / 1.2 |
| Length (mm) | 600 |
| Max. recommended static load load case 1 (kN) | 0.63 |
| Max. recommended static load case 2 (kN) | - |
| SKU | 538745 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Advantages
- The console's stable base plate offers a secure hold for a load-bearing construction.
- The base plate's long slots, which are at 90° to one another, allow the console to be easily aligned.
Properties
- Material Base plate: steel E295 (material no.: 1.0050) acc. to DIN EN 10025-2
- Material Channel: steel S215 G (material no.: 10116 G) acc. to DIN 1623
- Zinc plating: electro zinc-plated, min. 13 µm
Applications
- Economic installation of single pipes or pipelines along the wall
