Fischer Cantilever Arm FCA 41
by Fischer
KES 1,760
KES 3,700
KES 2,250
KES 2,600

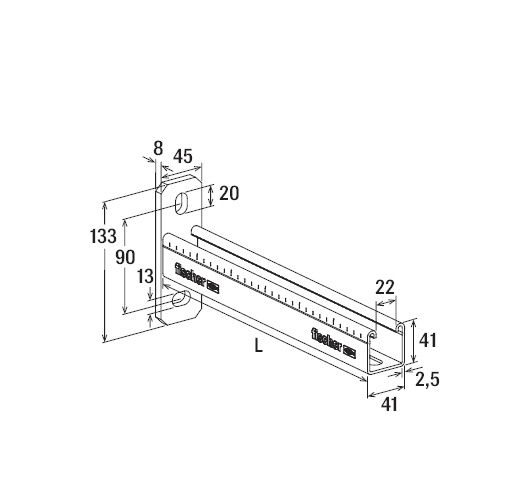

The fischer cantilever arm FCA allows for quick and easy installation of pipelines along the wall, for example. Simple alignment of console via slots in the base plate that are rotated 90° to face each other.
- Fire inspection report in line with MLAR/EN13501.
- Graduated range of lengths.
- Different hole geometry.
- High installation flexibility.
| UPC | 77359 |
|---|---|
| Model Number | 77359 |
| Profile | 41 / 2.5 |
| Length (mm) | 300 |
| Max. recommended static load load case 1 (kN) | 1.8 |
| Max. recommended static load case 2 (kN) | 0.9 |
| SKU | 77359 |
| UPC | 517411 |
|---|---|
| Model Number | 517411 |
| Profile | 41 / 2.5 |
| Length (mm) | 300 |
| Max. recommended static load load case 1 (kN) | 1.8 |
| Max. recommended static load case 2 (kN) | 0.9 |
| SKU | 517411 |
| UPC | 77361 |
|---|---|
| Model Number | 77361 |
| Profile | 41 / 2.5 |
| Length (mm) | 450 |
| Max. recommended static load load case 1 (kN) | 1.2 |
| Max. recommended static load case 2 (kN) | 0.6 |
| SKU | 77361 |
| UPC | 77363 |
|---|---|
| Model Number | 77363 |
| Profile | 41 / 2.5 |
| Length (mm) | 600 |
| Max. recommended static load load case 1 (kN) | 0.9 |
| Max. recommended static load case 2 (kN) | - |
| SKU | 77363 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Advantages
- The fire inspection report in line with MLAR/EN13501 guarantees independently tested functional safety.
- The graduated range of lengths allows for an ideal adaptation to the application.
- The arm's solid base plate offers a secure hold for load-bearing construction.
- The base plate's long slots, which are at 90° to one another, allow the arm to be easily aligned.
- The stamped teeth in the channel gives the sliding nuts a secure hold for high shear loads, e.g. for vertical installation.
Properties
- Material: steel S235 JR (material no.10037) acc. to DIN EN 10025
- Zinc plating: electro zinc-plated, min. 10 µm
Applications
- Quick and easy installation of pipelines (e.g. along the wall)
Permission
- GS 3.2/14-175-4
