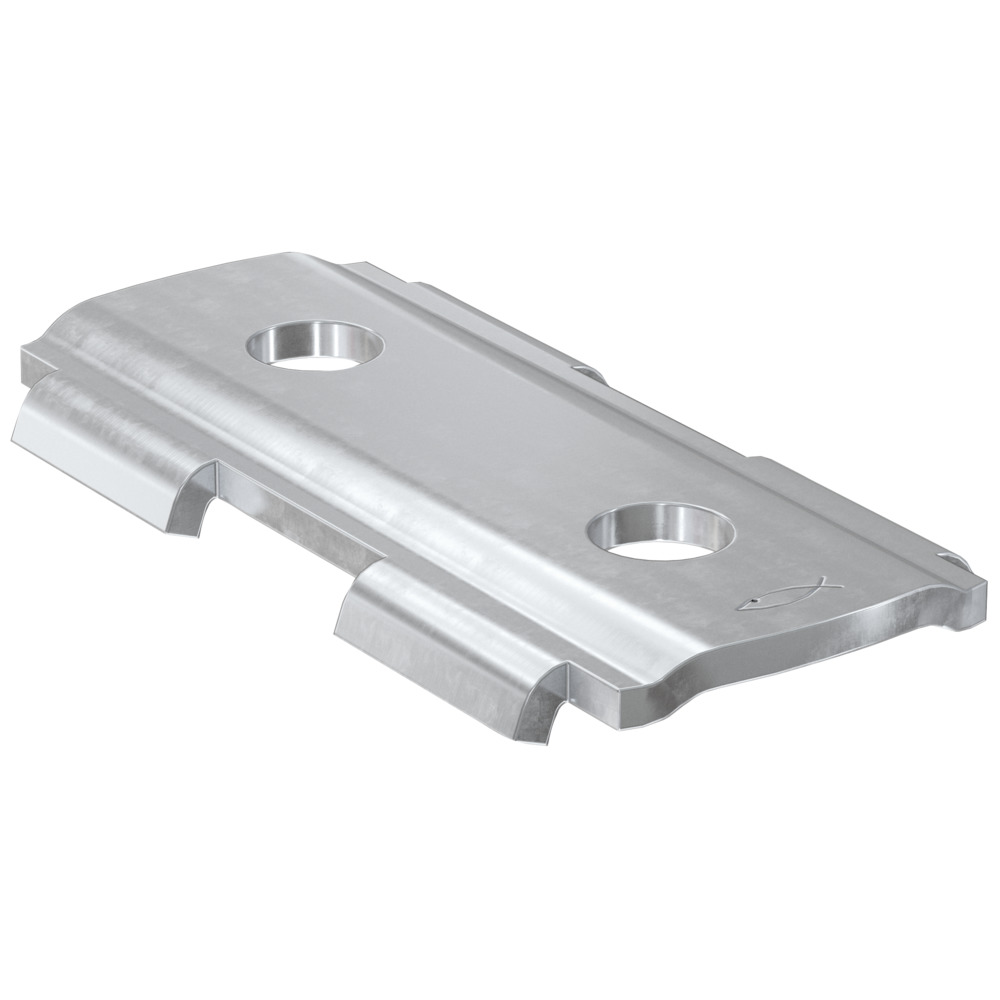

Fischer Channel connector SV 31
by Fischer
KES 165

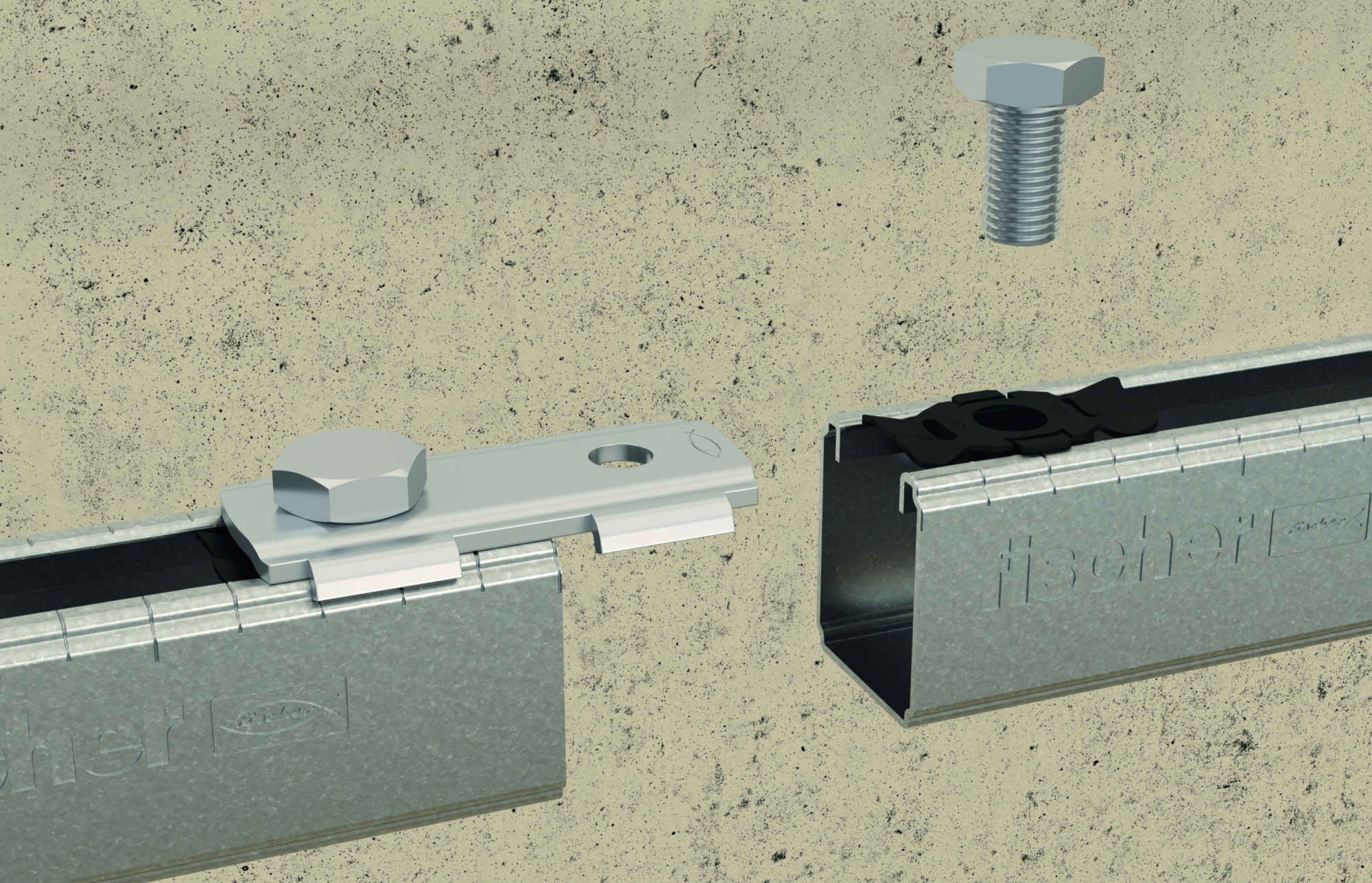

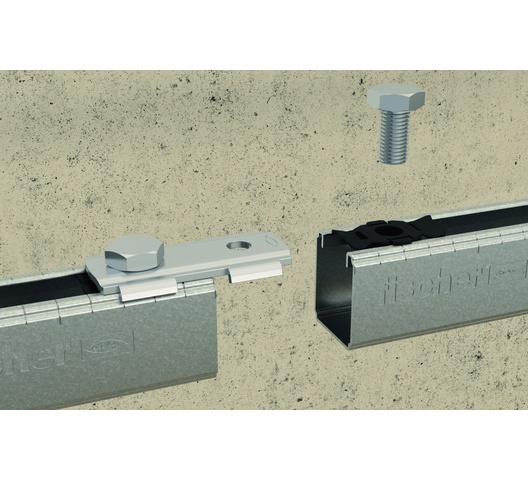

The construction element fischer channel connector SV 31 connects mounting channels to each other in different directions by means of a form fit with the mounting channel profiles FLS. The channel connector SV 31 can be used as a longitudinal connector in the single or double design, as a flat angle and as a parallel connector. Thanks to the special retaining lugs, the construction element can be precisely used lengthwise and crosswise to the channel profile FLS. fischer offers the SV 31 with standard 8.5 mm perforation for an exact connection. The galvanized zinc version is suitable for installation in buildings.
- Tightening Torque: 10Nm
| UPC | 538641 |
|---|---|
| Model Number | 538641 |
| SKU | 538641 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Advantages
- The special retaining brackets at the SV construction elements enable a form-locking installation longitudinal and transverse to the channel direction to adapt the channel connection effectively
- The standardised long slots of the channel connector enable an exact connection to ALK cantilever arms or FLS channels by using FSM Clix P and a screw
Properties
- Material: steel S235 JR+CR (material no.: 1.0037) acc. to DIN EN 1652
- Zinc plating: electro zinc-plated, min. 5 µm acc. DIN EN ISO 4042
Applications

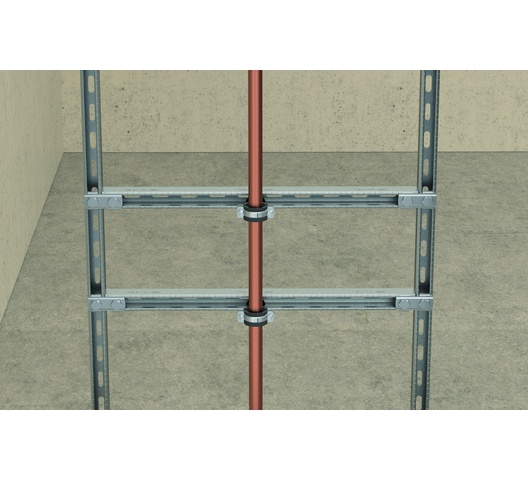

- With the channel connector SV 31 FLS channels can be connected in different directions.
