Fischer Frame fixing SXR-FUS hexagonal screw gvz
by Fischer

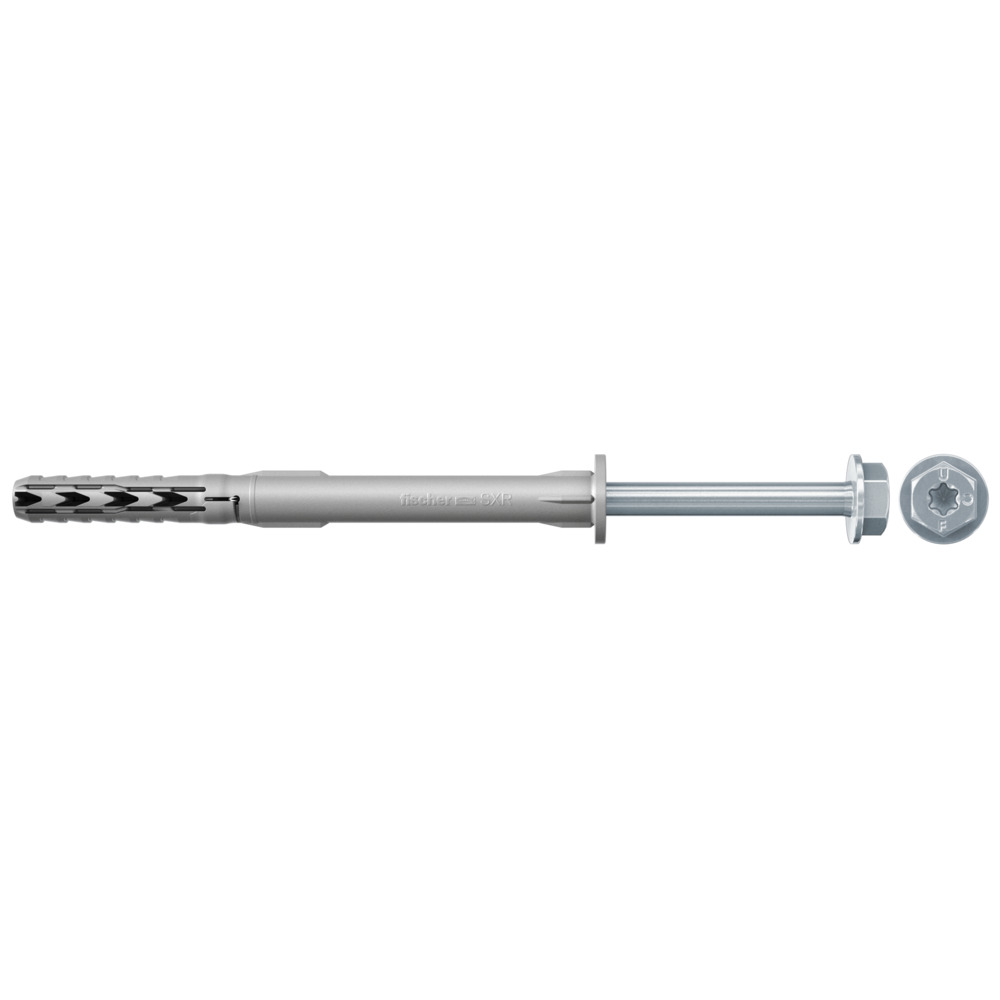

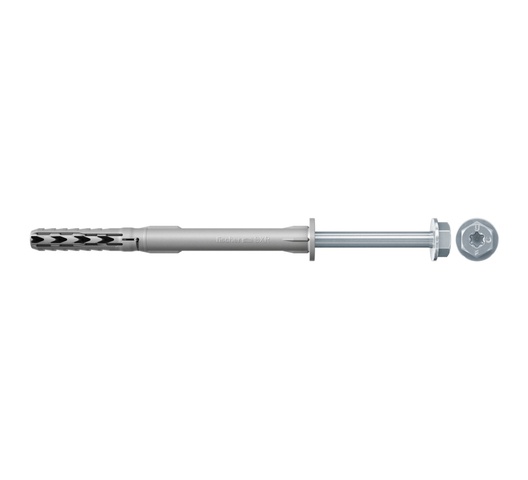

The fischer frame fixing SXR-FUS is a plug made of high-quality nylon along with the pre-mounted fischer hexagonal screw and moulded washer. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of only 50 mm, the frame fixing can be handled in an especially cost-effective manner for multiple fixing of non-load-bearing systems. The fischer frame fixing SXR-FUS is particularly recommended with the hexagonal screw and moulded washer for fixing metal constructions.
Available in (Hole diam.) x (Anchor len.):
10 x 60, 10 x 80, 10 x 100, 10 x 120, 10 x 140
- Technical Data
- ETA-approval
- Drill diameter 10 [mm]
- Min. drill hole depth for through fixings 70 [mm]
- Anchor length 60, 80, 100, 120, 140 [mm]
- Max. fixture thickness 10 [mm]
- Drive TX40 / SW 13
- Top Features
- Low anchorage depth saves time and costs.
- ETA rating in concrete and masonry.
- Plug expands in solid building materials.
- The plug anchors itself in the cavity in perforated building materials.
- With pre-mounted safety screw with hexagonal hexagonal head and moulded washer.
| UPC | 46329 |
|---|---|
| Model Number | 46329 |
| SKU | 46329 |
| UPC | 46330 |
|---|---|
| Model Number | 46330 |
| SKU | 46330 |
| UPC | 46331 |
|---|---|
| Model Number | 46331 |
| SKU | 46331 |
| UPC | 46332 |
|---|---|
| Model Number | 46332 |
| SKU | 46332 |
| UPC | 46333 |
|---|---|
| Model Number | 46333 |
| SKU | 46333 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription

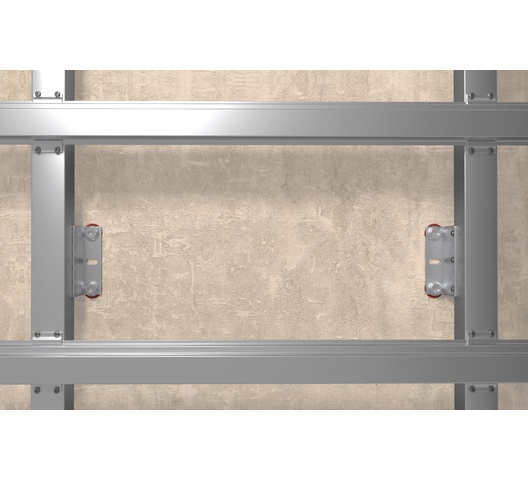

- Façade, ceiling and roof substructures made of metal
- Joist hanger
- Windows
- Gates and doors
- Fire protection doors
- Blinds / folding shutters
- Handrails
- Wardrobes
- Kitchen hanging cabinets
- TV consoles
- Shelves
- Lighting
- Wall covering
- Metal brackets
- Metal supports
- Guide rails
- Cable ducts
- Cable trays
- Radiators
- Air conditioning units
- Concrete ≥ C12/15
- Vertically perforated brick
- Hollow blocks made from lightweight concrete
- Perforated sand-lime brick
- Solid sand-lime brick
- Aerated concrete
- Solid block made from lightweight and normal weight concrete
- Solid brick
- Thermal insulation blocks
Permission
- ETA-07/0121
- DoP No. 0048
- DoP No. 0092
- DoP No. 0152
