Fischer Frame fixing SXR-T with safety screw gvz
by Fischer

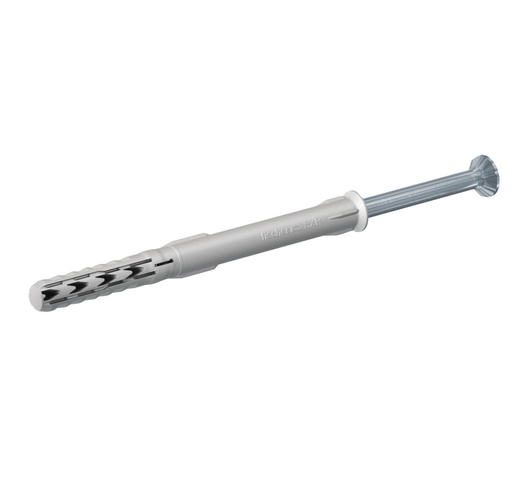

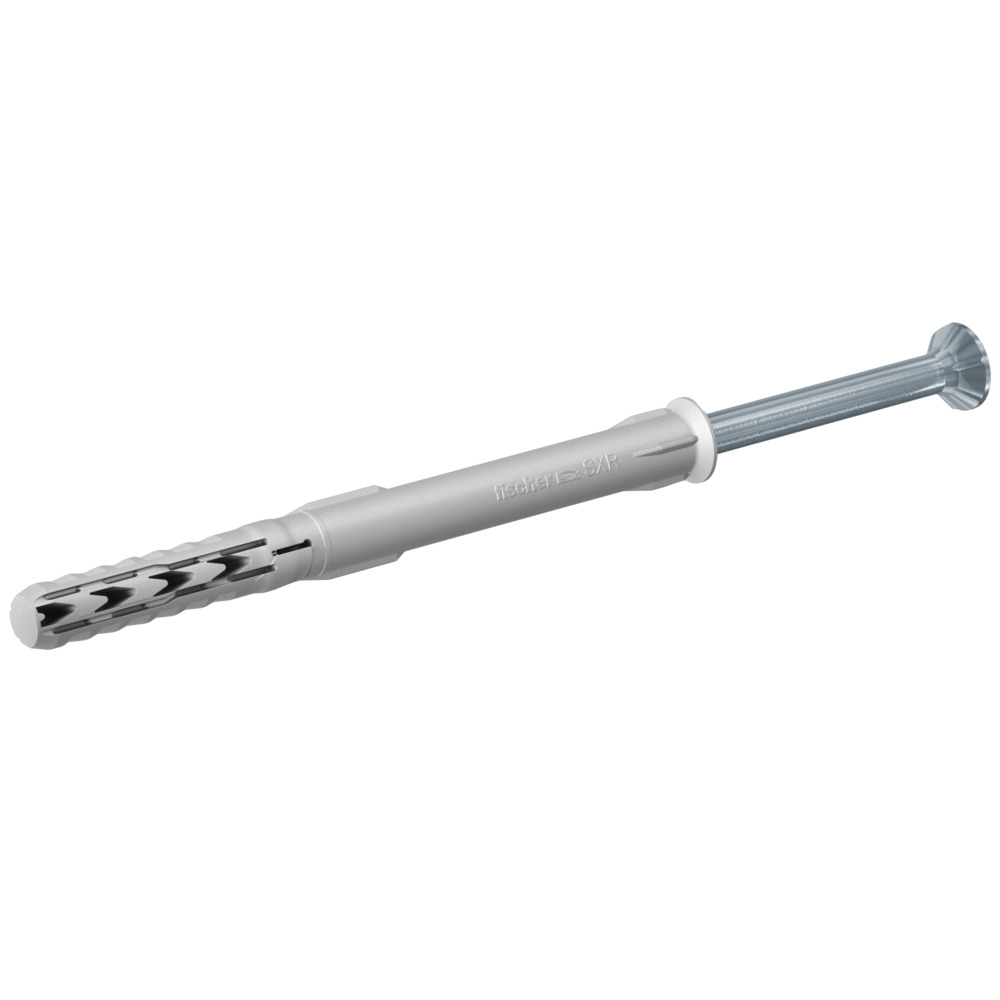

The fischer frame fixing SXR-T is a plug made of high-quality nylon along with the pre-mounted fischer safety screw with countersunk head. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of only 50 mm, the frame fixing can be handled in an especially cost-effective manner for multiple fixing of non-load-bearing systems. The fischer frame fixing SXR-T is particularly recommended with the countersunk head screw for fixing timber constructions.
Available in (Hole Diam. x Anchor Len.):
TX30 (Drive type): 8X80, 8X100, 8X120
TX40 (Drive type): 10X80, 10X100. 10X120, 10X160
- ETA-approval
- Drill diameter 8,10 [mm]
- Min. drill hole depth for through fixings 90 [mm]
- Anchor length 80,100,120,160 [mm]
- Max. fixture thickness 30 [mm]
- Drive TX30, TX40
- Cost-effective fixing due to low anchorage depth.
- Plug expands in solid building materials.
- The plug anchors itself in the cavity in perforated building materials.
- ETA approval in concrete and masonry.
- With safety screw with countersunk head.
| UPC | 503000 |
|---|---|
| Model Number | 503000 |
| SKU | 503000 |
| UPC | 503001 |
|---|---|
| Model Number | 503001 |
| SKU | 503001 |
| UPC | 503002 |
|---|---|
| Model Number | 503002 |
| SKU | 503002 |
| UPC | 46263 |
|---|---|
| Model Number | 46263 |
| SKU | 46263 |
| UPC | 46264 |
|---|---|
| Model Number | 46264 |
| SKU | 46264 |
| UPC | 46265 |
|---|---|
| Model Number | 46265 |
| SKU | 46265 |
| UPC | 46267 |
|---|---|
| Model Number | 46267 |
| SKU | 46267 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
- Façade, ceiling and roof substructures made of wood
- Squared timbers
- Windows
- Gates and doors
- Blinds / folding shutters
- Handrails
- Wardrobes
- Kitchen hanging cabinets
- TV consoles
- Shelves
- Lighting
- Motion detectors
- Wall covering
- Metal brackets
- Metal supports
- Guide rails
- Cable ducts
- Cable trays
- Radiators
- Beams
- Concrete ≥ C12/15
- Vertically perforated brick
- Hollow blocks made from lightweight concrete
- Perforated sand-lime brick
- Solid sand-lime brick
- Aerated concrete
- Solid block made from lightweight and normal weight concrete
- Solid brick
- Thermal insulation blocks
Permission
- ETA-07/0121
- DoP No. 0048
- DoP No. 0092
- DoP No. 0152
