Fischer Hammerfix with countersunk head gvz
by Fischer
KES 23
KES 25
KES 28
KES 30
KES 33
KES 35
KES 50
KES 58
KES 51
KES 128
KES 90

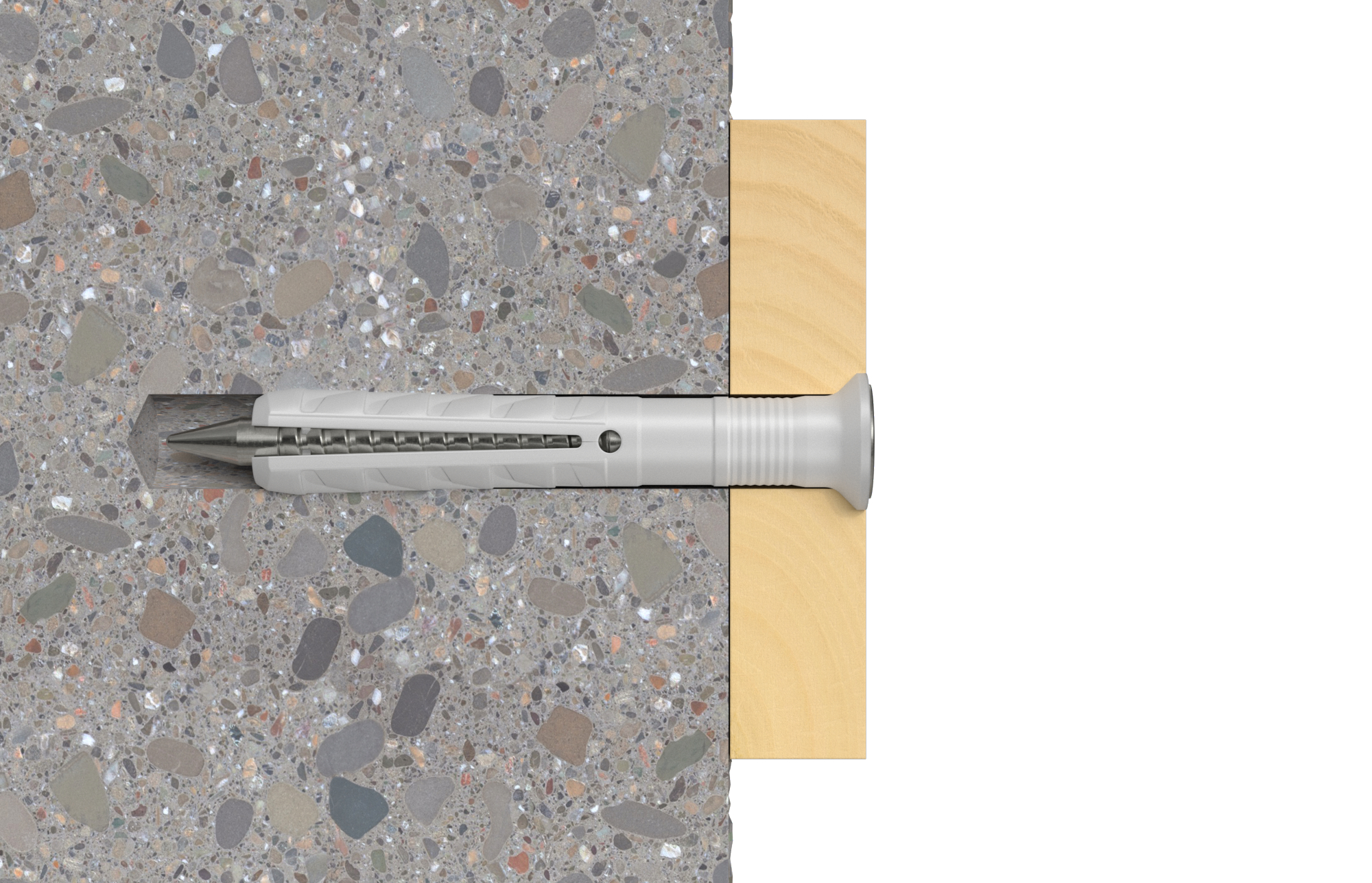

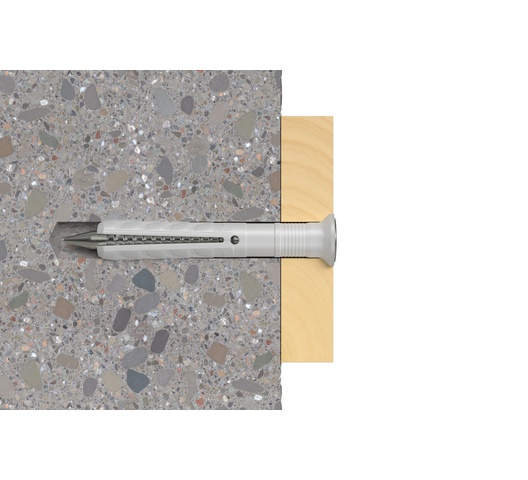

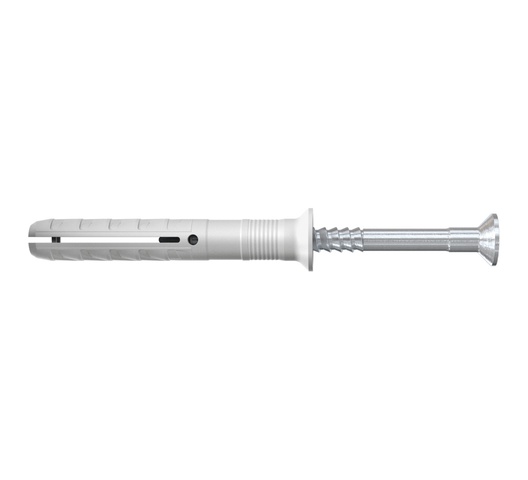

The fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.
- Fast Hammerset installation saves time: ideal for series installation.
- Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading.
- Subsequent dismantling of the nail screw with a cross-slot recess is possible.
- With countersunk head.
| UPC | 50351 |
|---|---|
| Model Number | 50351 |
| Drill hole Diameter (mm) | 5 |
| Anchor Length (mm) | 40 |
| Drive type | PZ2 |
| SKU | 50351 |
| UPC | 513834 |
|---|---|
| Model Number | 513834 |
| Drill hole Diameter (mm) | 6 |
| Anchor Length (mm) | 40 |
| Drive type | PZ2 |
| SKU | 513834 |
| UPC | 513835 |
|---|---|
| Model Number | 513835 |
| Drill hole Diameter (mm) | 6 |
| Anchor Length (mm) | 60 |
| Drive type | PZ2 |
| SKU | 513835 |
| UPC | 50355 |
|---|---|
| Model Number | 50355 |
| Drill hole Diameter (mm) | 6 |
| Anchor Length (mm) | 60 |
| Drive type | PZ2 |
| SKU | 50355 |
| UPC | 48791 |
|---|---|
| Model Number | 48791 |
| Drill hole Diameter (mm) | 8 |
| Anchor Length (mm) | 60 |
| Drive type | PZ3 |
| SKU | 48791 |
| UPC | 48792 |
|---|---|
| Model Number | 48792 |
| Drill hole Diameter (mm) | 8 |
| Anchor Length (mm) | 80 |
| Drive type | PZ3 |
| SKU | 48792 |
| UPC | 48793 |
|---|---|
| Model Number | 48793 |
| Drill hole Diameter (mm) | 8 |
| Anchor Length (mm) | 100 |
| Drive type | PZ3 |
| SKU | 48793 |
| UPC | 50357 |
|---|---|
| Model Number | 50357 |
| Drill hole Diameter (mm) | 8 |
| Anchor Length (mm) | 100 |
| Drive type | PZ3 |
| SKU | 50357 |
| UPC | 48794 |
|---|---|
| Model Number | 48794 |
| Drill hole Diameter (mm) | 8 |
| Anchor Length (mm) | 120 |
| Drive type | PZ3 |
| SKU | 48794 |
| UPC | 50346 |
|---|---|
| Model Number | 50346 |
| SKU | 50346 |
| UPC | 50347 |
|---|---|
| Model Number | 50347 |
| Drill hole Diameter (mm) | 10 |
| Anchor Length (mm) | 135 |
| Drive type | PZ3 |
| SKU | 50347 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Applications
- Substructures made of wood
- Wall connection or plaster profiles
- Cable and pipe clips
- Perforated tapes
Building materials
- Concrete
- Solid sand-lime brick
- Building brick
- Natural stone
- Solid brick made from lightweight concrete
- Aerated concrete
- Solid panel made from gypsum
- Vertically perforated brick
- Perforated sand-lime brick
- Hollow blocks made from lightweight concrete
