Fischer Sleeve Anchor FSA-B (Nut Type)
by Fischer
KES 85
KES 200
KES 125
KES 165
KES 185
KES 200
KES 230
KES 280

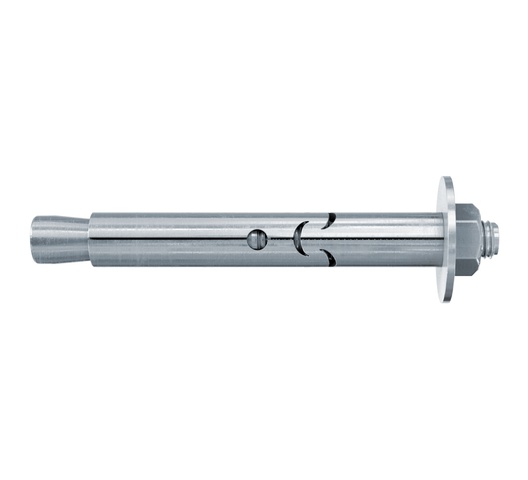

The fischer sleeve anchor FSA-B is a zinc-plated steel anchor with nut and washer for structural fixings made of zinc-plated steel. The FSA-B is set in the time-saving through-type installation. When tightening, the cone is pulled into the expansion sleeve and expands it against the hole wall. The recesses act as a crumple zone to take the torque slippage. The fixture is therefore pulled towards the anchoring base. The fischer sleeve anchor FSA-B is ideal for fastening fixings that are not relevant in safety terms such as ladders, gates, and temporary fixings in non-cracked concrete.
- Simple alignment due to optimised anchor geometry, even in narrow spaces.
- Surface flush removal due to detachable screw connection.
- With nut and washer.
| UPC | 68500 |
|---|---|
| Model Number | 68500 |
| Drill Diameter (mm) | 8 |
| Anchor Lenght (mm) | 65 |
| Min. Drill Hole Depth (mm) | 65 |
| Washer (outer diameter x thickness) (mm) | 12 x 1.6 |
| SKU | 68500 |
| UPC | 68501 |
|---|---|
| Model Number | 68501 |
| Drill Diameter (mm) | 8 |
| Anchor Lenght (mm) | 90 |
| Min. Drill Hole Depth (mm) | 90 |
| Washer (outer diameter x thickness) (mm) | 12 x 1.6 |
| SKU | 68501 |
| UPC | 68503 |
|---|---|
| Model Number | 68503 |
| Drill Diameter (mm) | 10 |
| Anchor Lenght (mm) | 69 |
| Min. Drill Hole Depth (mm) | 65 |
| Washer (outer diameter x thickness) (mm) | 24 x 2.1 |
| SKU | 68503 |
| UPC | 68504 |
|---|---|
| Model Number | 68504 |
| Drill Diameter (mm) | 10 |
| Anchor Lenght (mm) | 94 |
| Min. Drill Hole Depth (mm) | 90 |
| Washer (outer diameter x thickness) (mm) | 24 x 2.1 |
| SKU | 68504 |
| UPC | 68505 |
|---|---|
| Model Number | 68505 |
| Drill Diameter (mm) | 10 |
| Anchor Lenght (mm) | 119 |
| Min. Drill Hole Depth (mm) | 115 |
| Washer (outer diameter x thickness) (mm) | 24 x 2.1 |
| SKU | 68505 |
| UPC | 68506 |
|---|---|
| Model Number | 68506 |
| Drill Diameter (mm) | 12 |
| Anchor Lenght (mm) | 81 |
| Min. Drill Hole Depth (mm) | 75 |
| Washer (outer diameter x thickness) (mm) | - |
| SKU | 68506 |
| UPC | 68507 |
|---|---|
| Model Number | 68507 |
| Drill Diameter (mm) | 12 |
| Anchor Lenght (mm) | 96 |
| Min. Drill Hole Depth (mm) | 90 |
| Washer (outer diameter x thickness) (mm) | - |
| SKU | 68507 |
| UPC | 68508 |
|---|---|
| Model Number | 68508 |
| Drill Diameter (mm) | - |
| Anchor Lenght (mm) | 12 |
| Min. Drill Hole Depth (mm) | 115 |
| Washer (outer diameter x thickness) (mm) | - |
| SKU | 68508 |
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Applications
- Handrails
- Consoles
- Ladders
- Cable trays
- Gates
- Façades
- Temporary or structural fixings
Building materials
Suitable for:
- Concrete C12/15 to C20/25, non-cracked
- Natural stone with dense structure
Advantages
- The optimised geometry minimises setting energy and enables the use in extremely narrow spaces. This allows for user-friendly installation.
- The anchor design makes it possible to use different head shapes for flexible design solutions: Hexagon head (type S), bolt version with nut and washer (type B).
- The detachable screw connection allows for surface flush removal.
