Fischer Threaded Rods FIS AM grade 8.8
by Fischer

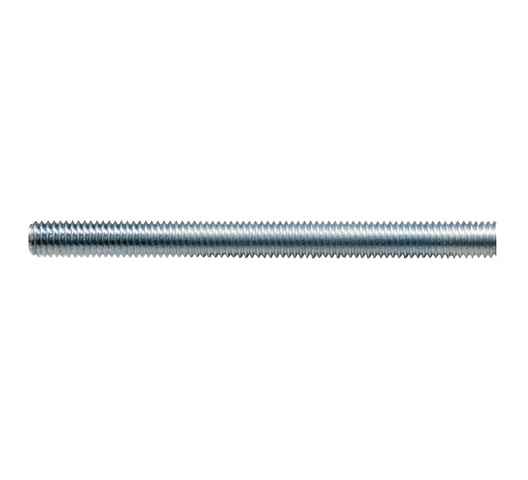

The fischer anchor rod FIS A is made of galvanized steel of steel quality 8.8 The anchor rod is a system component for the various fischer injection mortars In conjunction with the injection mortar, the fischer anchor rod is suitable or approved for all substrates Thorough drill hole cleaning is recommended for the maximum load-bearing capacity of the system The system of galvanized anchor rod in connection with fischer injection mortar is suitable or approved for fixings in dry interiors The versatile FIS A anchor rod The universal solution for various fischer injection mortars. This simplifies the complexity and storage In combination with the various fischer injection mortars, approved for anchoring in cracked and non-cracked concrete, solid brick masonry, perforated brick masonry and aerated concrete Optimal load adaptation through variable anchoring depth. This reduces assembly and material costs Sold by the meter to cut to size as required The anchor rod FIS A can be used with almost all fischer injection mortars (not with Highbond special mortar FIS HB) and can be selected individually depending on the requirements. This enables a wide range of applications The wide range of approved anchor rods FIS A from M6 to M30 opens up variable application possibilities Please note the approvals of the respective mortar The anchor rod FIS A is suitable for pre-positioned and push-through installation The anchor rod FIS A is inserted into the drill hole by hand with a slight twisting movement to the bottom of the hole.
- Relevant to ETA approval
- Nominal drill diameter in perforated stone 20mm
- Nominal drill diameter in solid stone / aerated concrete 14mm
- Thread M 12mm
- Length 1000mm
- The FIS A anchor rod is approved or suitable for different building materials in conjunction with the various fischer injection mortars
UPC | 509224 |
---|---|
Model Number | 509224 |
Drill hole Diameter (mm) | 14 |
Effective anchoring Depth (mm) | 70 - 240 |
SKU | 509224 |
UPC | 509225 |
---|---|
Model Number | 509225 |
Drill hole Diameter (mm) | 18 |
Effective anchoring Depth (mm) | 80 - 320 |
SKU | 509225 |
UPC | 519410 |
---|---|
Model Number | 519410 |
Drill hole Diameter (mm) | 24 |
Effective anchoring Depth (mm) | 90 - 400 |
SKU | 519410 |
