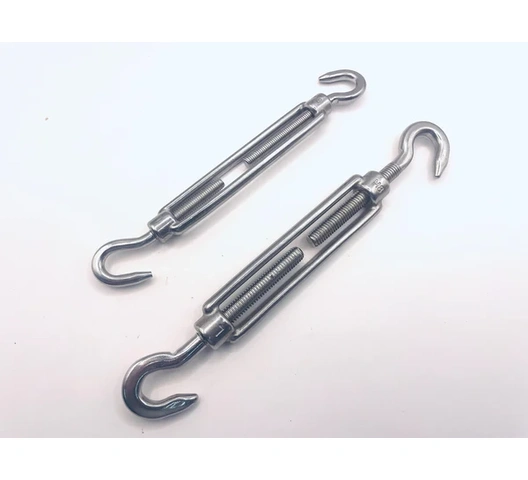

Open Turnbuckle hook/hook H/K
Material: Stainless Steel
Class / Grade: A4 (316) , Electro Galvanized
Size: 6,8,10mm - Dimensions indicate material cross-section and base length
These are also known as tensioners, turnbuckles, straining screws, adjusters, or barrel strainers.
One end is right-handed and the opposite end is left-handed. You create tension by simply rotating the turnbuckle centre body.
| Dimension | Size G | A | B | L | L1 | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Grade |
| 6 | 6 | 10 | 10 | 110 | 148 | SS316 |
| 8 | 8 | 12 | 11 | 110 | 153 | SS316 |
| 10 | 10 | 16 | 10 | 120 | 185 | SS316 |
| 6 | 6 | 10 | 8 | 110 | 148 | Electro Galvanized |
| 8 | 8 | 12 | 11 | 110 | 153 | Electro Galvanized |
| 10 | 10 | 16 | 14 | 125 | 185 | Electro Galvanized |
- Material: Stainless Steel
- Class / Grade: A4 (316) , Electro Galvanized
- Size: 6,8,10mm - Dimensions indicate material cross-section and base length
- These are also known as tensioners, turnbuckles, straining screws, adjusters, or barrel strainers.
- One end is right-handed and the opposite end is left-handed. You create tension by simply rotating the turnbuckle centre body.
- Dimension Size G A B L L1
- (mm) (mm) (mm) (mm) (mm) (mm) Grade
- 6 6 10 10 110 148 SS316
- 8 8 12 11 110 153 SS316
- 10 10 16 10 120 185 SS316
- 6 6 10 8 110 148 Electro Galvanized
- 8 8 12 11 110 153 Electro Galvanized
- 10 10 16 14 125 185 Electro Galvanized
| UPC | H/K |
|---|---|
| Model Number | H/K |
| SKU | H/K |
